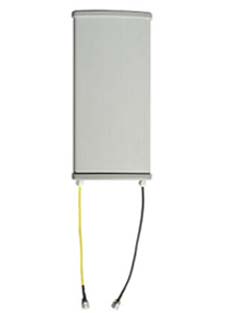

1. Installation Sketch
2.Electrical Characteristic
| No. | Item | Specifications | |||||||
| 1 | Channel | Vertical | Horizontal | ||||||
| 2 | Frequency（MHz） | 698-960 | 1710~2700 | 698-960 | 1710~2700 | ||||
| 3 | Beamwidth-° | E | 85 | 55 | 85 | 55 | |||
| H | 90±15 | 70±15 | 90±15 | 70±15 | |||||
| 4 | V.S.W.R（in BW ） | ≤2.0 | ≤1.8 | ≤2.0 | ≤1.8 | ||||
| 5 | lsolation -dB | 698-960≥20 | 1710~2700≥25 | ||||||
| 6 | Gain-dBi | 6 | 8 | 6 | 8 | ||||
| 7 | IM3-dBm(2×33dBm) | -107 | |||||||
| 8 | Impedance | 50 Ω | |||||||
| 9 | Polarization | Vertical(Black cable) | Horizontal(Yellow cable) | ||||||
| 10 | Max power | 50W | |||||||
3. Mechanical
| No. | Item | Specification |
| 1 |
Cable |
|
| 2 | Connector | N female or customized |
| 3 | Size | 35*17.6*6.4cm |
| 4 | Mounting | Wall mounting |
