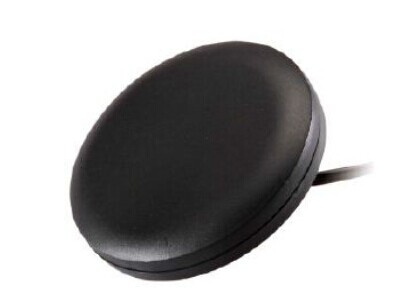

DIMENSIONS
SPECIFICATIONS
| Item | Specifications | ||
| GPS/GLONASS Antenna | Dielectric
Antenna |
Center Frequency | L1:1575.42±1MHz L2: 1602±1MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic（Zenith） | ||
| V.S.W.R | ＜1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB（max） | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | ＜1.5 | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
| V.S.W.R | ＜2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| GSM/3G Antenna | Frequency Range | 824~960MHz/1710~2170MHz | |
| V.S.W.R（min） | ＜2.5 | ||
| Polarization | Linear | ||
| Gain | 2dBi | ||
| Impendance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/SMB | ||
| Radome Material | ABS | ||
| Mounting Method | Screw | ||
| Environmental | Operating Temperature | -40℃~+85℃ | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP66 | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
Radiation Pattern
GPS /GLONASS Antenna
GSM Antenna
