1. SCOPE

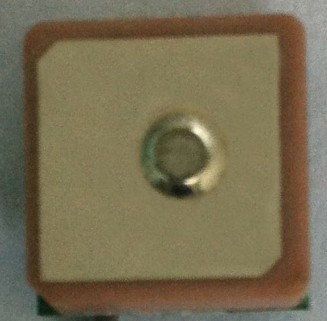

This specification shall cover the characteristics of the dielectric antenna element with the type VTCA1575R1240A.
2. OUTLINE DRAWING AND DIMENSIONS
2.1 Appearance: No visible damage and dirt.
2.2 The products conform to the RoHS directive and national environment protection law.
2.3 Dimensions
1. ELECTRICAL SPECIFICATIONS
3.1 Performance Characteristics
| Items | Content |
| Nominal frequency MHz | 1575.42±1.023 |
| Center frequency MHz(with tape on mm× mm Ground Plane) | |
| -10dB Bandwidth MHz min | |
| Return Loss at Center Frequency dB | |
| Polarization Model | |
| Impedance | |
| Frequency Temperature Coefficient | 20ppm/deg.℃ max |
3.2 Impedance Characteristic
4. TEST
4.1 Test Conditions
Parts shall be measured under a condition (Temp.:20℃±15℃, Humidity : 65%±20% R.H.).
4.2 Test Ji
